Author Topic: My custom curved handle saber  (Read 3119 times)
Vex
Knight Commander
*

Force Alignment: -402
Posts: 1739
« on: June 14, 2014, 12:48:03 AM »

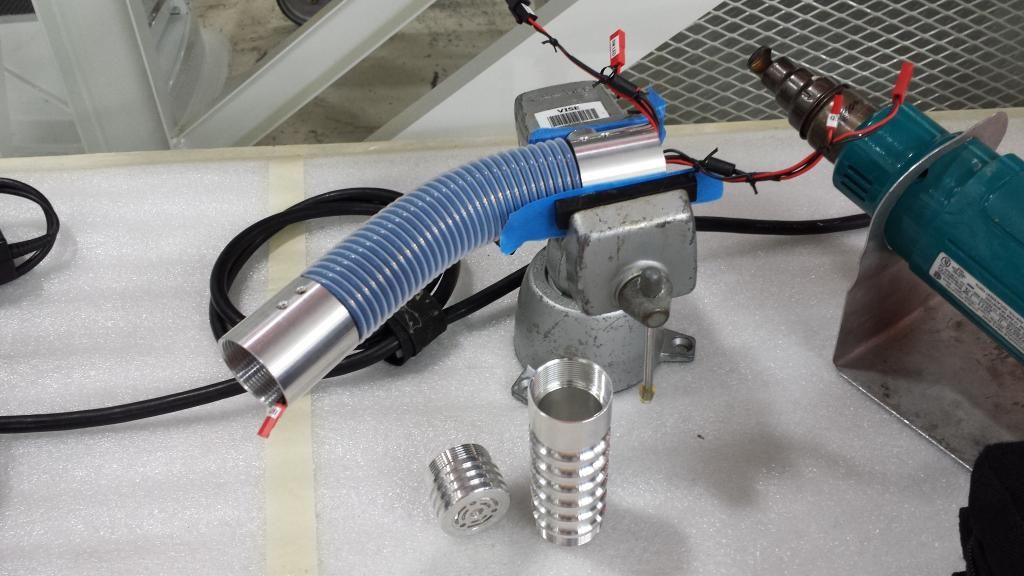

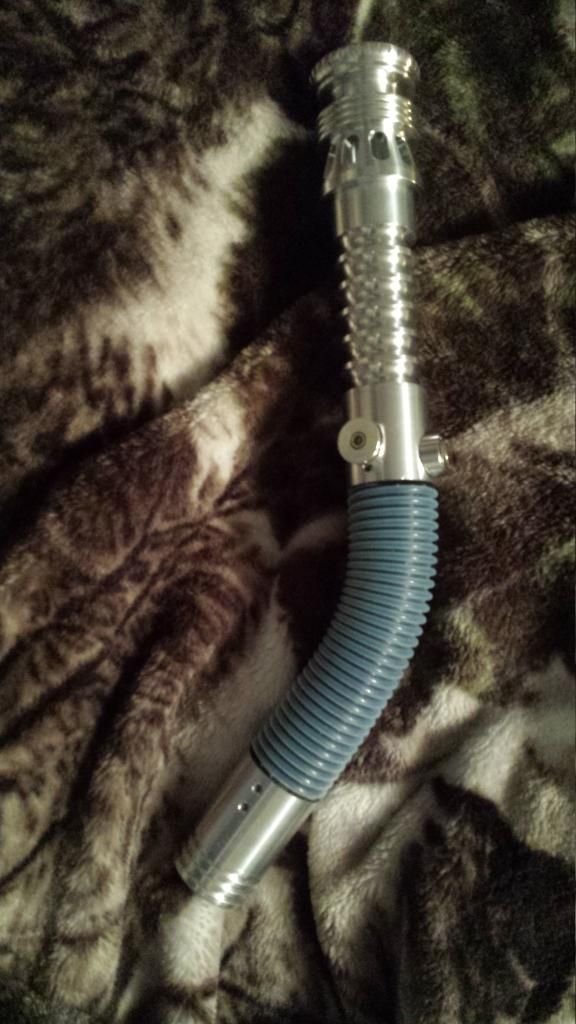

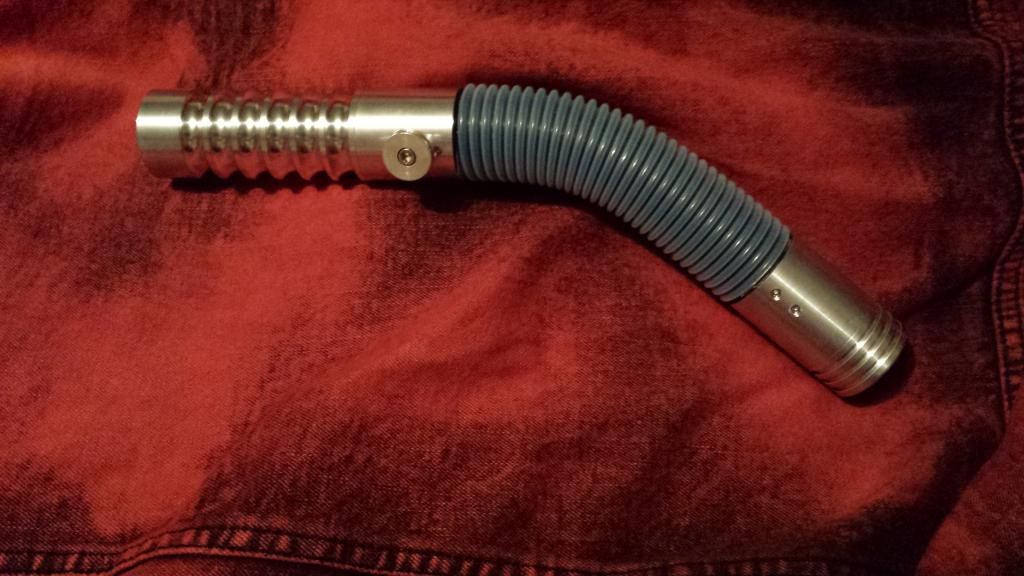

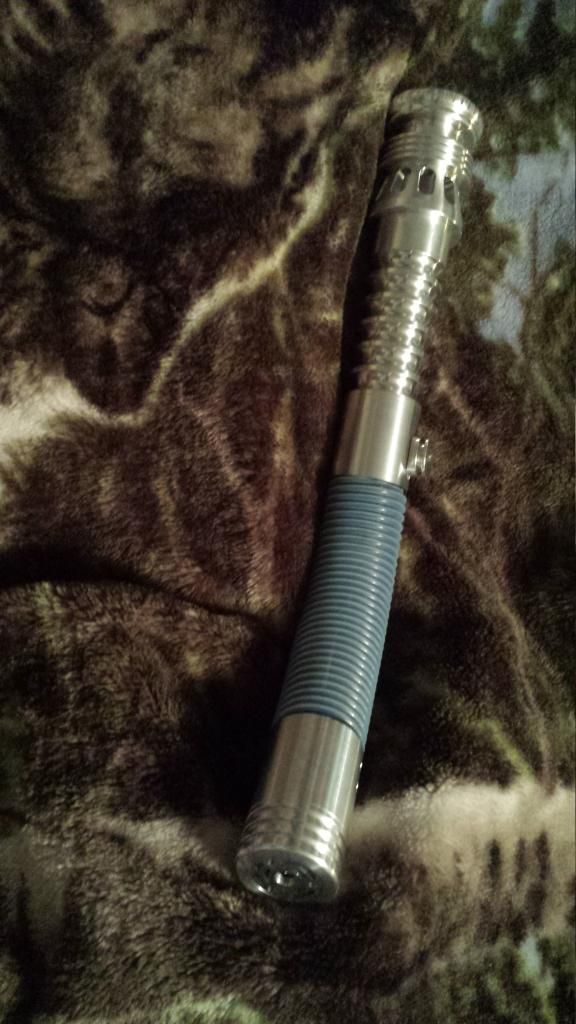

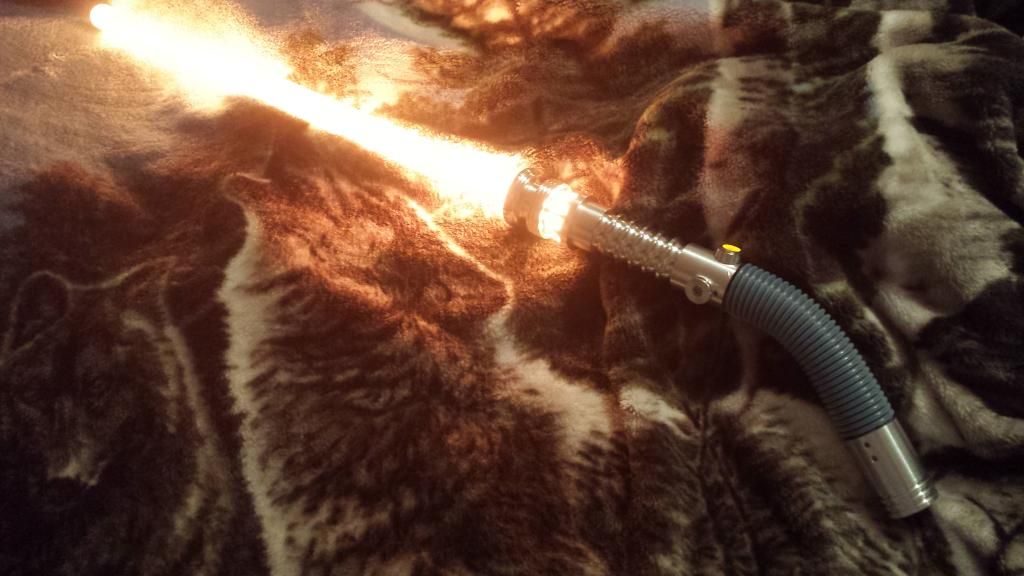

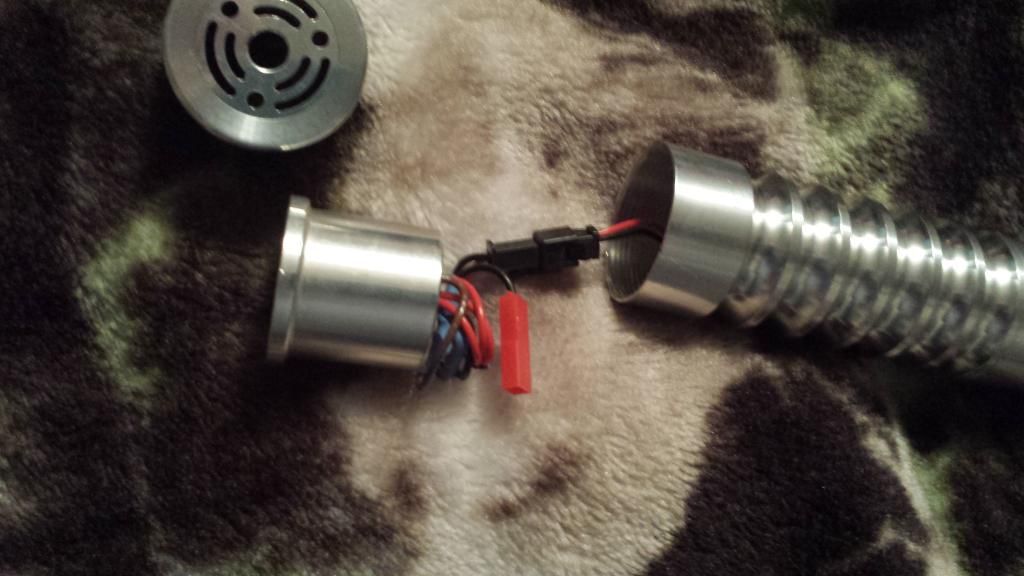

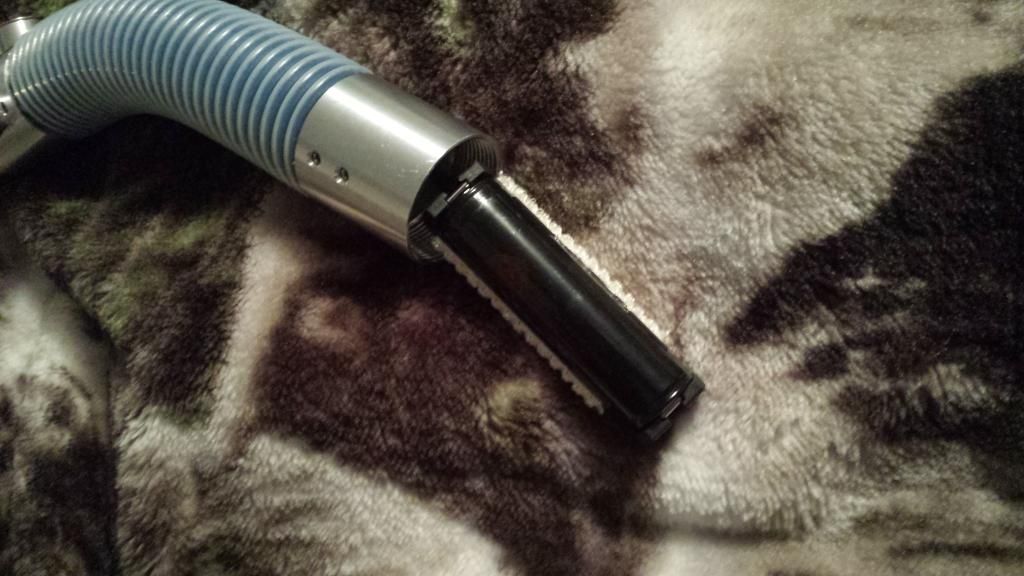

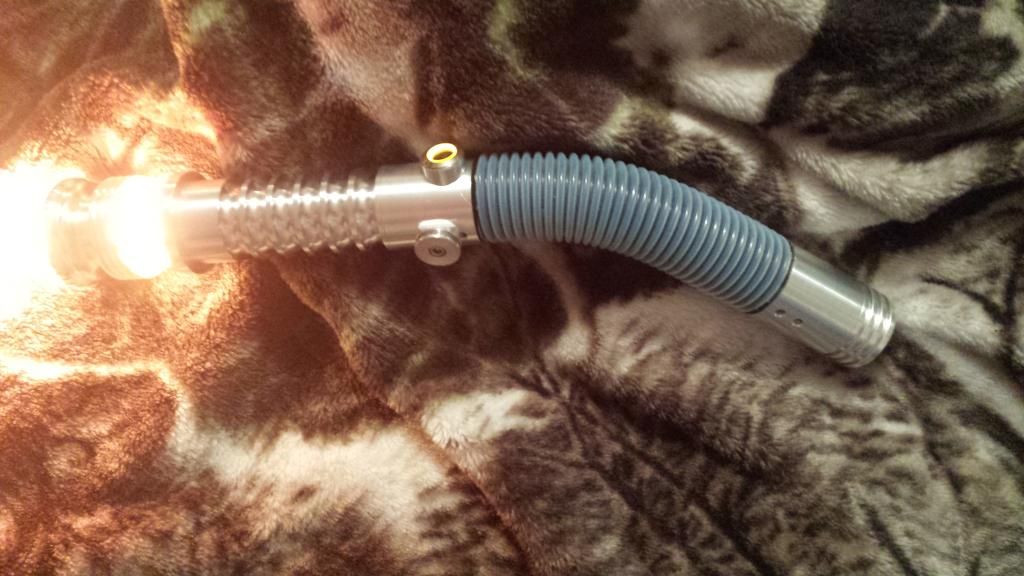

Ok so it started out as a high pressure washer. That washer got ran over and as I was trashing it I noticed the handle was a nicely curved aluminum tube. I cut out out the section, wrapped it in soft velcro, then threaded on a piece of clear convoluted tubing, it's really tight. I got some MHS adapters witch completed the handle after one was drilled and fitted with a latching amber AV switch. I used an 18650 Li-Ion battery.  And to round it out an Ultra Sabers PO MLS unit with the masterpiece Manticore emitter. The harness is fully outfitted with quick disconnects. I might install sound later.  I'm really happy  with the results. This is my first curved hilt saber. And now the Pics!!








Logged

dark side points please

sedstiskyfaller
Artisan of the Azure Order
Knight Commander
*

Force Alignment: 617
Posts: 2214


Blue is my color, it is who I am


WWW
« Reply #1 on: June 14, 2014, 03:09:48 AM »
Very interesting take on a curved hilt! The ingenuity of this is spectacular and definitely worthy of a point. Great job.
Logged


3D-print shop: http://www.shapeways.com/shops/sedstiskyfallerdesigns
Twitter: @SedstiSkyfaller https://twitter.com/SedstiSkyfaller
Facebook: https://www.facebook.com/sedstiskyfallerdesigns

jyn-toar
Knight Officer
*

Force Alignment: 9
Posts: 115
« Reply #2 on: June 14, 2014, 03:28:33 AM »
Is it completed?  That grip section would look good in black..or maybe in silver or red and black O-rings...
Logged

chicago.jedi
Knight Commander
*

Force Alignment: 287
Posts: 1020


Light side points please
« Reply #3 on: June 14, 2014, 04:45:56 AM »
Very cool. Point, indeed.

How does it feel and handle? It looks kind of on the long side but that could just be the pictures.

My hat is off to you for repurposing a broken item into something awesome.
Logged

Jedijosh
Knight Commander
*

Force Alignment: 105
Posts: 1332


Come back to the light side we have chips & Salsa
« Reply #4 on: June 14, 2014, 05:39:08 AM »
Quote from: chicago.jedi on June 14, 2014, 04:45:56 AM
Very cool. Point, indeed.

How does it feel and handle? It looks kind of on the long side but that could just be the pictures.

My hat is off to you for repurposing a broken item into something awesome.

Quote from: jyn-toar on June 14, 2014, 03:28:33 AM
Is it completed?  That grip section would look good in black..or maybe in silver or red and black O-rings...

Chicago and Jyn are so much more eloquent then I am. Have a point
Logged
Sabers:
Aeon v2 (CG), Archon v2.1 (VA), Graflex CE (Obsidian Emerald), Guardian (Obsidian GB),

Wish list:
Azure Mantis, Arbiter, Bellicose in RGB, Chosen One CE, Consular in CG, Prophecy v3

James Casey
Forum Watchman
Knight Commander
*

Force Alignment: 1510
Posts: 5981
« Reply #5 on: June 14, 2014, 08:39:24 AM »
Outstanding work, Vex! That looks awesome!
Logged


"I'll split this world open and tear down the sky before I let him come to even the slightest harm."

Vex
Knight Commander
*

Force Alignment: -402
Posts: 1739
« Reply #6 on: June 14, 2014, 01:28:36 PM »
Thanks all. I considered a black handle or even replacing the tubing with a leather wrap, but it looks nice as is and to be honest, the grip feels great. The saber is a bit longer then I had intended, however with a short blade (24"to 30")  it's pretty comfortable. The ribbed section makes for a great grip I'd 2 hands are needed. One handed it feels great.   Plus if I make it shorter there will be no room for sound to be added later. I'll post size comparison pics later.
Logged

dark side points please

Zren Tobas
Knight Commander
OVER 9000!!
*********

Force Alignment: -2080
Posts: 14907


[Give Light Side Points!] [Give Dark Side Points!]
« Reply #7 on: June 14, 2014, 02:42:25 PM »
Nice. Not bad. Hey you could leather wrap the grip still if you think about it, because then the leather grip part would have kind of a ribbed look which would look cool. =] Or look for leather in say tan or something and give it that bone look.
Logged
Sabers: Liberator V3 CG ObsV4 sound!, Graflex GB, Overlord AB, Crimson Savior BR, Bane PO, Dark Initiate V2 LE BH, Shock GB, Archon V2.1 CG, Dark Sentinel LE GB ObSLite!, Standard Issue V3 CG, Dominix V3 LE BR, Sentinel SRD, Dominix V2 FO, Exile CG

[/url]SW1 by joshgarcia07[/url

Abraxus
Knight Major
*

Force Alignment: -32
Posts: 352
« Reply #8 on: June 14, 2014, 02:55:04 PM »
Very nice!  I am sure someday, curved hilts will be more readily available, but for now it is nice to see an example of what is possible.
Logged


My Collection
------------
Dark Prophecy (Consular Green)
Archon V2 (Blazing Red/Arctic Blue)
Raven (Violet Amethyst)
Initiate V3 (Guardian Blue)

James Casey
Forum Watchman
Knight Commander
*

Force Alignment: 1510
Posts: 5981
« Reply #9 on: June 14, 2014, 11:07:30 PM »
Out of curiosity, did you have to get the parts custom threaded for the MHS components, or are the silver parts the adapters you mentioned?
Logged


"I'll split this world open and tear down the sky before I let him come to even the slightest harm."

Vex
Knight Commander
*

Force Alignment: -402
Posts: 1739
« Reply #10 on: June 15, 2014, 01:26:34 AM »
They are the adapters.
