Author Topic: My Homemade Blade Plug (WIP)  (Read 2386 times)
LeoninJesterXII
Knight Lieutenant
*

Force Alignment: 40
Posts: 205

There is no Light Side, or Dark Side of the force.
« on: August 05, 2014, 04:15:40 AM »
I got bored, and saw some things laying around. I had an old flashlight, and a thread bobbin.

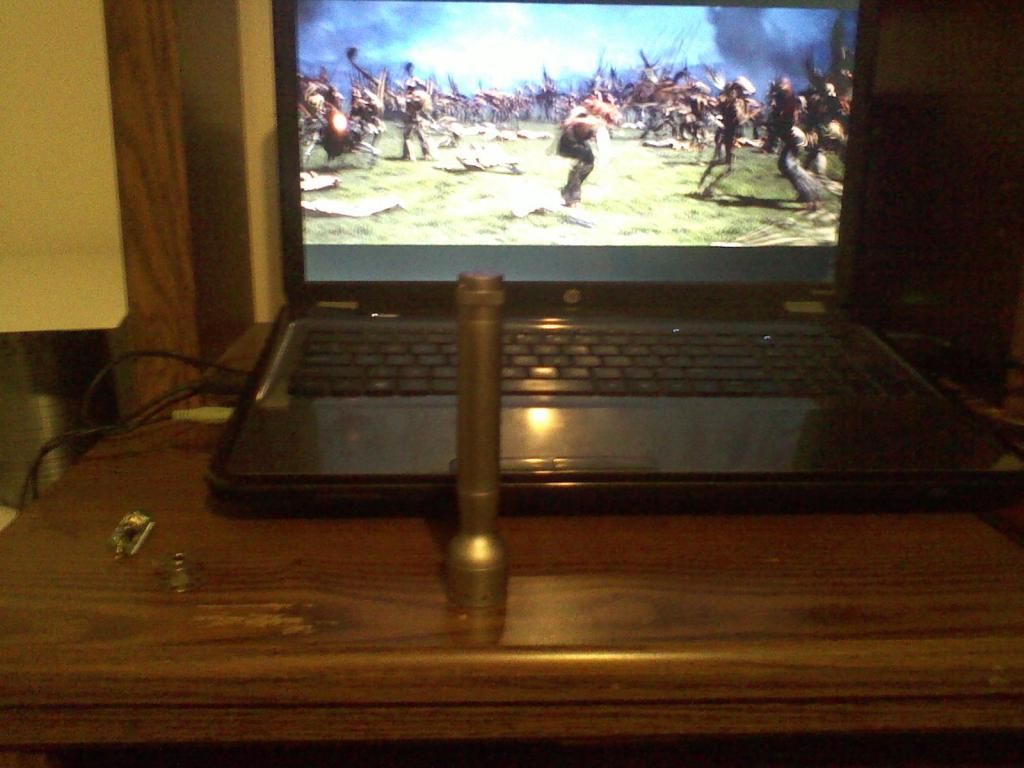

The Flashlight, gutted. It didn't work, anyways.



The bobbin. Steel.

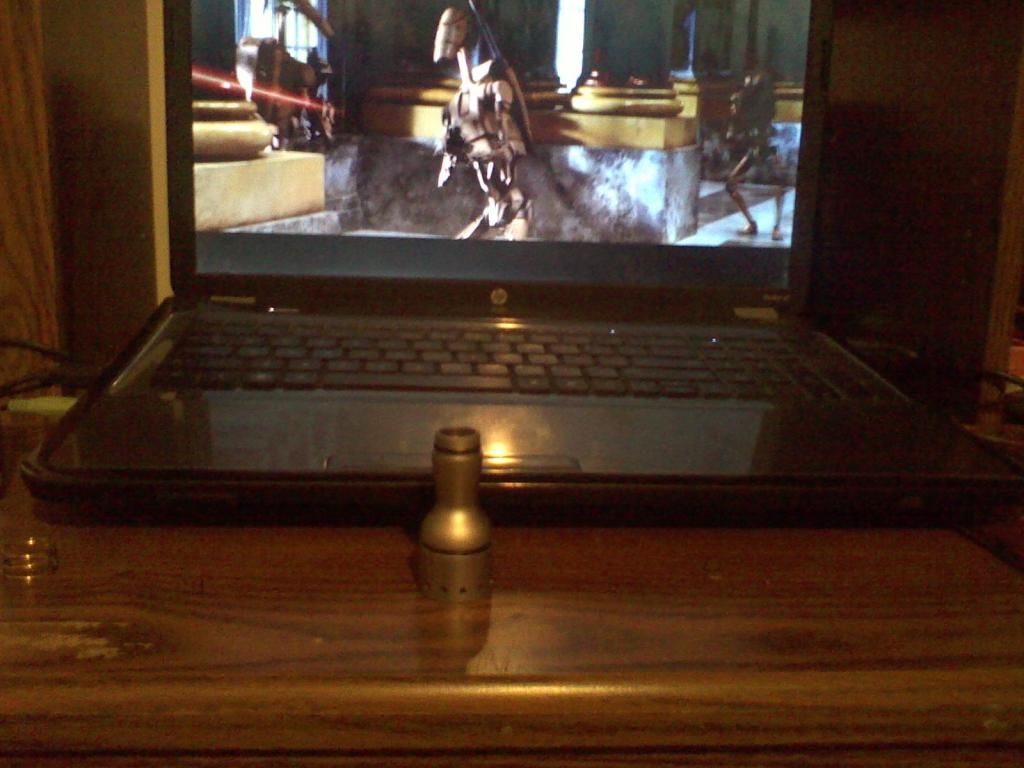

The bobbin put in the flashlight head.

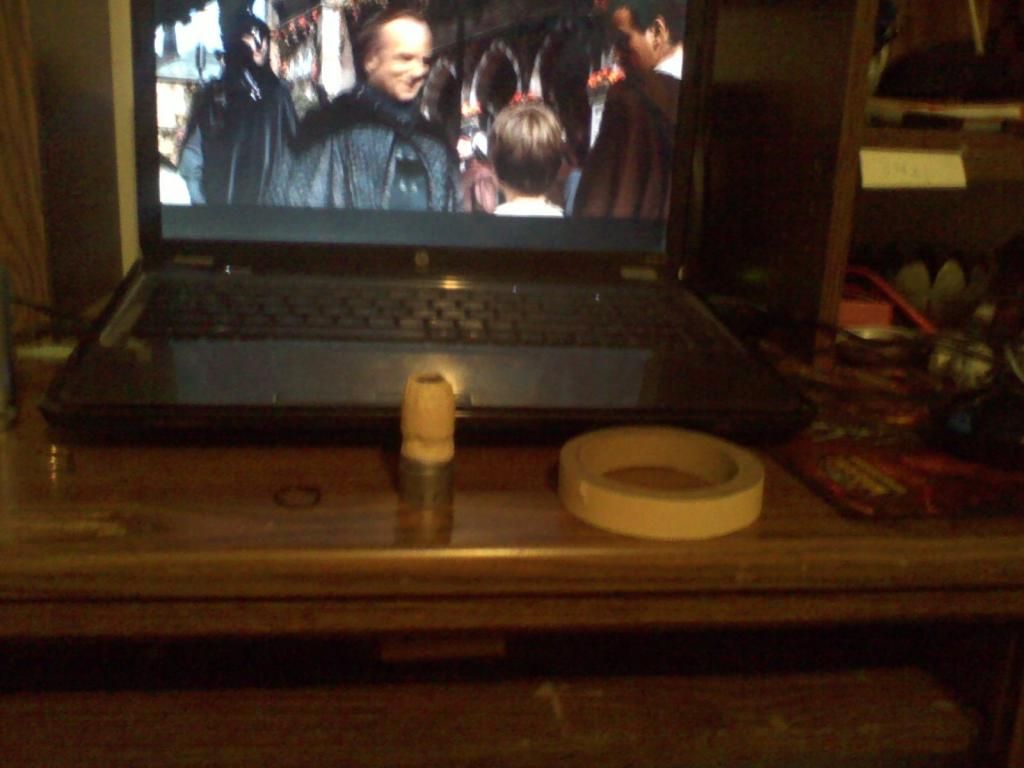

Masking tape is a magical substance. This is to fill space, and allow the retention screw to grip the thing. I will be looking for a better way to do this.

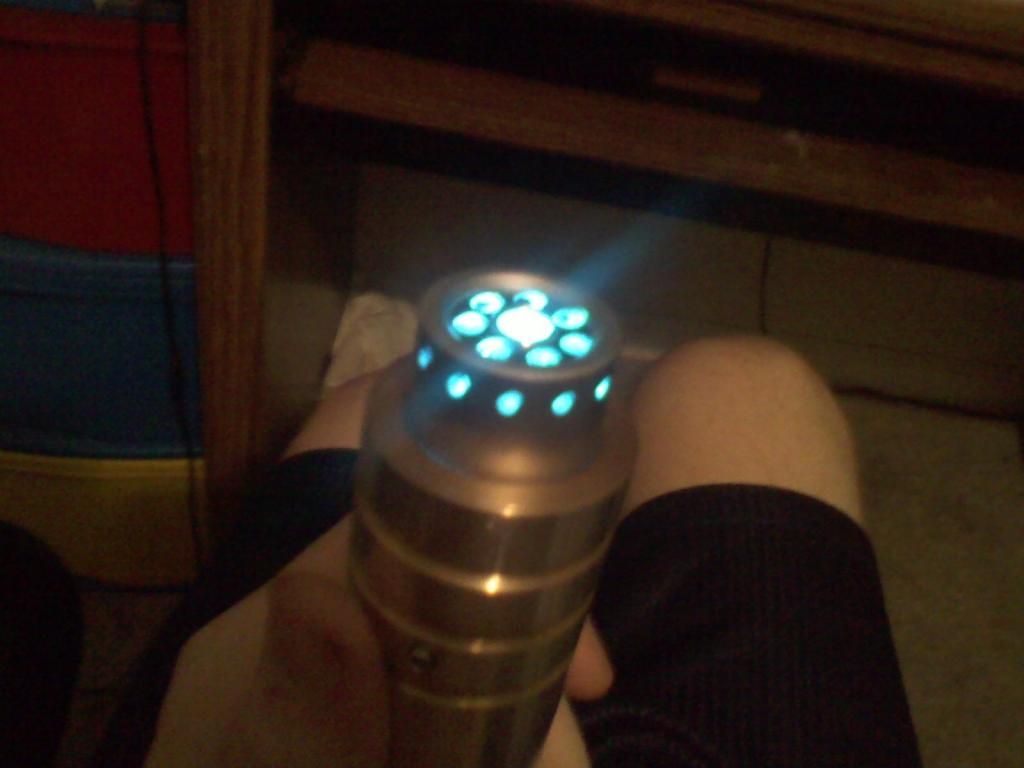

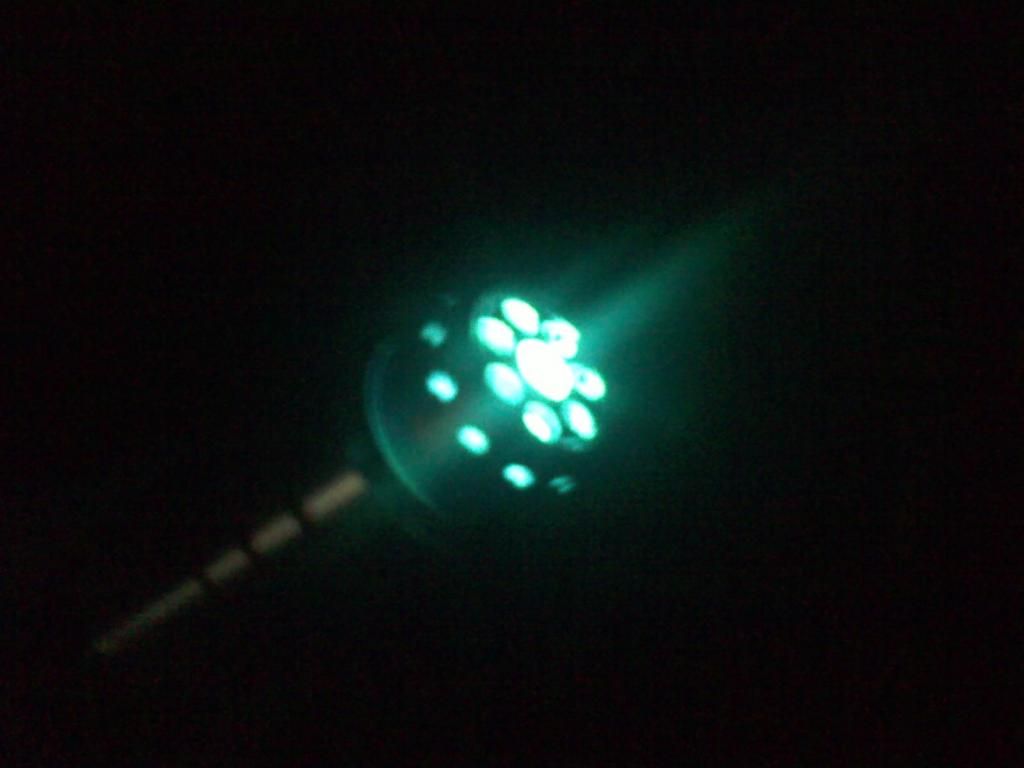

Looks like SRD because the hole pattern in the bobbin diffuses the colouring.

Now, this is my first crack at it. It'll still blind you, and doesn't sit even, but I will be working to fix those eventually.
Logged
There is no Light Side, or Dark Side of the force. There is the force. It is what its wielder decides. How a man uses a weapon does not change its nature.

[Also known as Darth Bael.]

Sabers
Aeon LE V3 in AB
Dark Standard Issue with vertical grooves in Bane's Heart [My mate's]

Molina00
Forum Emissary
Knight Commander
*

Force Alignment: 459
Posts: 3312
« Reply #1 on: August 05, 2014, 01:51:20 PM »
Not bad at all.  I like all the windows in it, and TPM going on in the background.  Tongue
Is there a film or something you could put inside of it to diffuse the light a little more?
A point for your ingenuity.

Logged
I felt a great disturbance in the force as if millions of nerds cried out in terror and were suddenly silenced.

Integrity can accommodate the inadvertent error and the honest difference of opinion; it cannot accommodate deceit or subordination of principle.

Karmack
Forumverse Loremaster
Master of Ceremonies
SaberForum.Com Moderator
Knight Commander
************

Force Alignment: 1152
Posts: 5602


Light side points please.
« Reply #2 on: August 05, 2014, 03:09:42 PM »
Well done!  A thread bobbin...  Hmm...
Logged
signature picture by DarthScrub

Master Singer of the Mak'Tor

jedi Kai-gon
Knight Commander
*

Force Alignment: 33
Posts: 825


Knight of the Red Jedi Order
« Reply #3 on: August 05, 2014, 03:33:20 PM »
Have a point for creativity. I agree with Molina00 about adding something to diffuse the light.
Logged

LeoninJesterXII
Knight Lieutenant
*

Force Alignment: 40
Posts: 205

There is no Light Side, or Dark Side of the force.
« Reply #4 on: August 05, 2014, 04:40:56 PM »
I have some heavy-gauge Mylar film I'll try to use.
Logged
There is no Light Side, or Dark Side of the force. There is the force. It is what its wielder decides. How a man uses a weapon does not change its nature.

[Also known as Darth Bael.]

Sabers
Aeon LE V3 in AB
Dark Standard Issue with vertical grooves in Bane's Heart [My mate's]

LeoninJesterXII
Knight Lieutenant
*

Force Alignment: 40
Posts: 205

There is no Light Side, or Dark Side of the force.
« Reply #5 on: August 05, 2014, 04:56:35 PM »
I said it before, I'll say it again. Masking tape is a magical substance. I laid a piece down in the neck of the flashlight, behind the bobbing, and it prevent blindness very well without destroying the brightness.
Logged
There is no Light Side, or Dark Side of the force. There is the force. It is what its wielder decides. How a man uses a weapon does not change its nature.

[Also known as Darth Bael.]

Sabers
Aeon LE V3 in AB
Dark Standard Issue with vertical grooves in Bane's Heart [My mate's]
